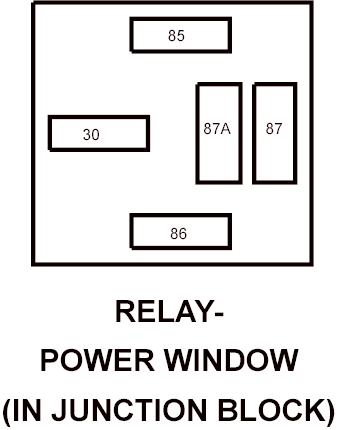

Power Window Relay (In JB) Connector End View
RELAY-POWER WINDOW (IN JB)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A139 12RD/YL |
FUSED B(+) |
| 85 |
INTERNAL |
ACCESSORY DELAY RELAY CONTROL |
| 86 |
INTERNAL |
FUSED B(+) |
| 87 |
F30 14PK/YL |
POWER WINDOW RELAY OUTPUT |
| 87A |
- |
- |
