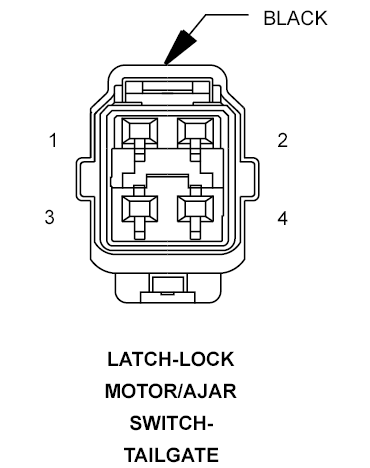

Lock Motor/Ajar Switch Tailgate Latch Connector End View
LATCH-LOCK MOTOR/AJAR SWITCH-TAILGATE - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G78 20VT/OR |
TAILGATE AJAR SWITCH SENSE |
| 2 |
G910 20VT/BR |
TAILGATE SWITCH GROUND |
| 3 |
P31 20TN/YL |
TAILGATE UNLOCK DRIVER |
| 4 |
P30 20TN/DG |
TAILGATE LOCK DRIVER |
