Line Pressure Sensor (2.8L 45RFE) Connector End View

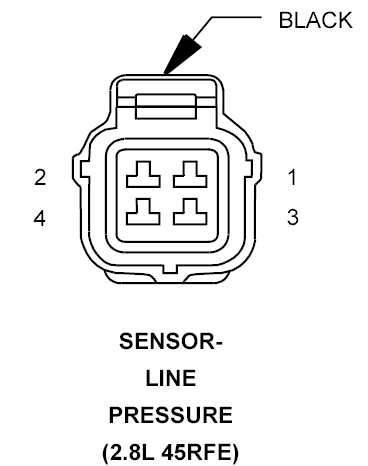

SENSOR-LINE PRESSURE - BLACK 4-WAY (2.8L 45RFE)

GKJ780247Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z133 20BK/LG GROUND
2 T39 20BR/YL 5 VOLT SUPPLY
3 T38 20YL/BR LINE PRESSURE SENSOR SIGNAL
4 - -
