 Courtesy of CHRYSLER CORP.
|

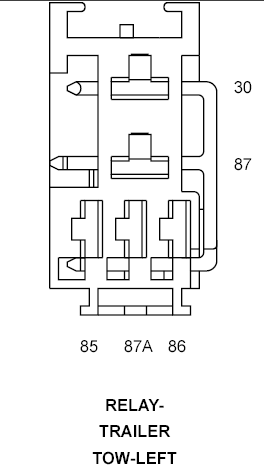

| CAV |
CIRCUIT |
FUNCTION |
| 30 |
L673 16YL |
LEFT TURN SIGNAL |
| 85 |
Z993 14BK |
GROUND |
| 86 |
L63 18WT/DG |
LEFT TURN SIGNAL |
| 87 |
L76 16PK/RD |
TRAILER TOW BRAKE LAMP RELAY OUTPUT |
| 87 |
L76 16PK/RD |
TRAILER TOW BRAKE LAMP RELAY OUTPUT |
| 87A |
L651 16WT/LG |
TRAILER TOW BRAKE LAMP RELAY OUTPUT |
