Left Front Fog Lamp Connector End View

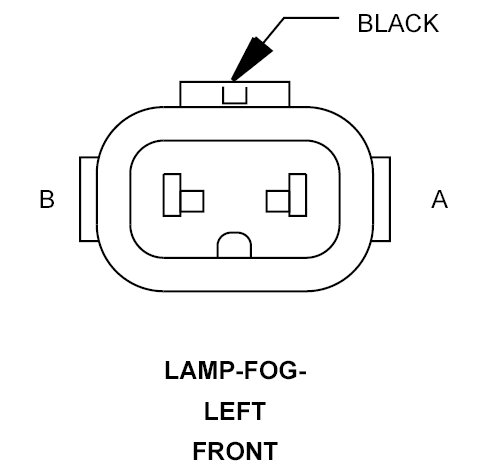

LAMP-FOG-LEFT FRONT - BLACK 2-WAY

GKJ780141Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A Z931 16BK GROUND
B L89 16WT/YL FRONT FOG LAMP RELAY OUTPUT
