Knock Sensor 2 (3.7L) Connector End View

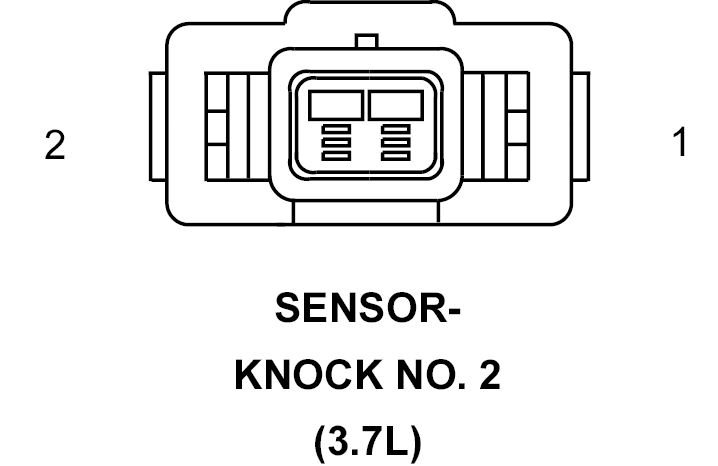

SENSOR-KNOCK NO. 2 - 2-WAY (3.7L)

GKJ780324Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K242 20BR/WT KNOCK SENSOR NO. 2 SIGNAL
2 K924 20PK/RD KNOCK SENSOR NO. 2 RETURN
