Knock Sensor 1 (3.7L) Connector End View

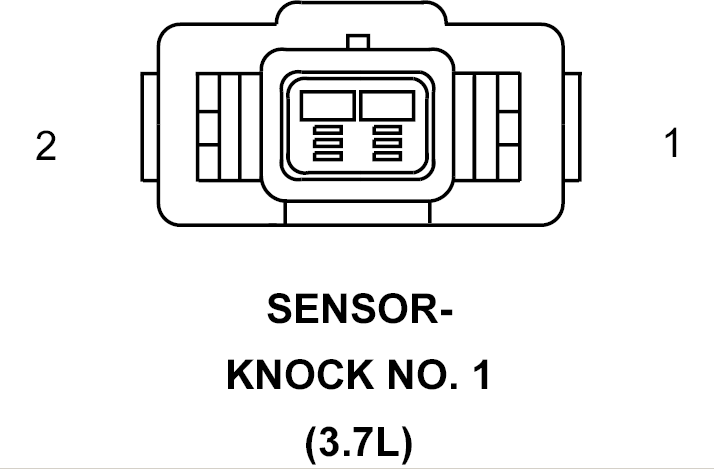

SENSOR-KNOCK NO. 1 - 2-WAY (3.7L)

GKJ780246Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K42 20DB/OR KNOCK SENSOR NO. 1 SIGNAL
2 K942 20BR/LG KNOCK SENSOR NO. 1 RETURN
