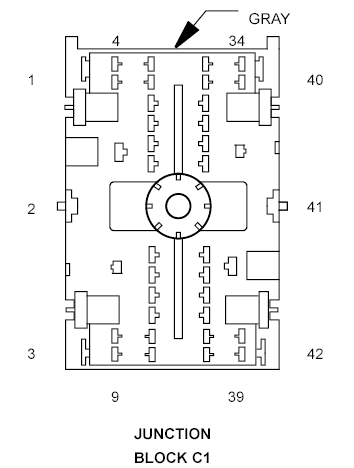

Junction Block Connector End View (C1)
JUNCTION BLOCK C1 - GRAY 42-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | F944 12PK/LG | IGNITION SWITCH OUTPUT (RUN-START) |
| 4 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 5 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 6 | - | - |
| 7 | X3 20DG/VT | HORN RELAY CONTROL |
| 8 | L78 20WT/OR | FUSED PARK LAMP RELAY OUTPUT (EXCEPT EXPORT) |
| 8 | L78 18WT/OR | FUSED PARK LAMP RELAY OUTPUT (EXPORT) |
| 9 | A207 16RD/LG | FUSED B(+) (LHD) |
| 10 | E2 20OR/BR | PANEL LAMPS DRIVER (LIGHTBAR) |
| 11 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 12 | - | - |
| 13 | A333 20WT/RD | FUSED B(+) |
| 14 | A908 20RD | FUSED B(+) |
| 15 | A908 20RD | FUSED B(+) |
| 16 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 17 | Z944 16BK | GROUND |
| 18 | - | - |
| 19 | - | - |
| 20 | Z943 14BK | GROUND |
| 21 | L309 20WT/OR | HIGH BEAM RELAY CONTROL |
| 22 | - | - |
| 23 | Z327 20BK/WT | GROUND |
| 24 | Z327 20BK/WT | GROUND |
| 25 | F943 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 26 | A333 20WT/RD | FUSED B(+) (SKIM) |
| 27 | A908 20RD | FUSED B(+) |
| 28 | F302 20GY/PK | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 29 | F302 20GY/PK | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 30 | - | - |
| 31 | F942 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 32 | - | - |
| 33 | F1 18PK/WT | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 34 | C16 20DB/GY | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 35 | F307 16LB/PK | FUSED IGNITION SWITCH OUTPUT (RUN-ACC) (RHD) |
| 36 | - | - |
| 37 | A103 18GY/RD | FUSED B(+) |
| 38 | C115 20DB | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 39 | F100 20PK/VT | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 40 | F981 12PK/YL | IGNITION SWITCH OUTPUT (RUN-ACC) |
| 41 | A701 18BR/RD | FUSED B(+) |
| 42 | F921 12PK/YL | IGNITION SWITCH OUTPUT (RUN) |
