High Mounted Stop Lamp Connector End View

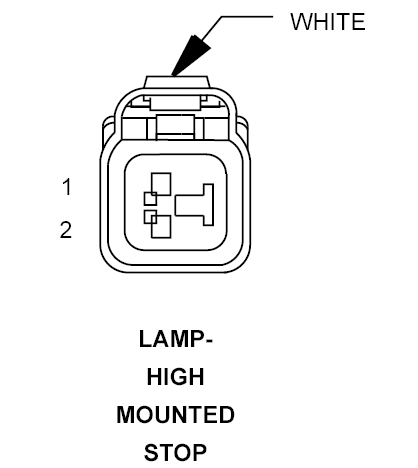

LAMP-HIGH MOUNTED STOP - WHITE 2-WAY

GKJ780147Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z255 18RD GROUND
