Flip Up Glass Release Switch Connector End View

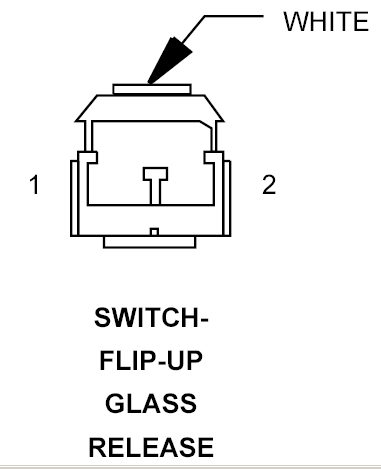

SWITCH-FLIP-UP GLASS RELEASE - WHITE 2-WAY

GKJ780292Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G910 20VT/BR TAILGATE SWITCH GROUND
2 P101 20LG/WT FLIP-UP GLASS RELEASE SWITCH SENSE
