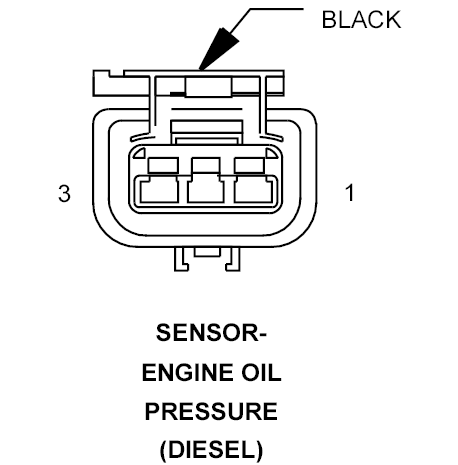

Engine Oil Pressure Sensor (Diesel) Connector End View
SENSOR-ENGINE OIL PRESSURE - BLACK 3-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K301 20BR/LG |
5 VOLT SUPPLY |
| 2 |
K302 20BR/WT |
ENGINE OIL PRESSURE SENSOR SIGNAL |
| 3 |
K300 20BR |
SENSOR GROUND |
