Engine Coolant Temperature Sensor (Gas) Connector End View

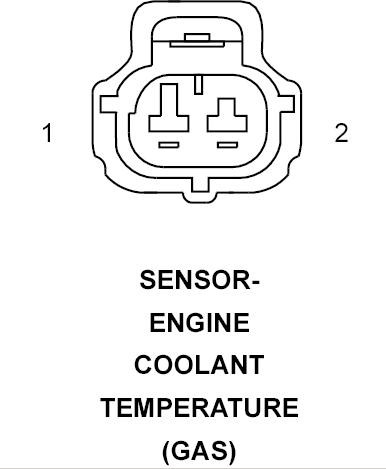

SENSOR-ENGINE COOLANT TEMPERATURE - 2-WAY (GAS)

GKJ780236Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K2 20VT/OR ECT SIGNAL
2 K900 20DB/DG SENSOR GROUND
