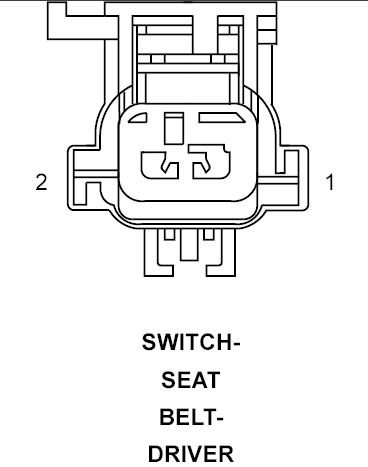

Driver Seat Belt Switch Connector End View
SWITCH-SEAT BELT-DRIVER - 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R57 20DG |
DRIVER SEAT BELT SWITCH SENSE (EXCEPT HEATED SEATS) |
| 1 |
R57 18DG |
DRIVER SEAT BELT SWITCH SENSE (HEATED SEATS) |
| 2 |
Z849 20BK/OR |
GROUND |
