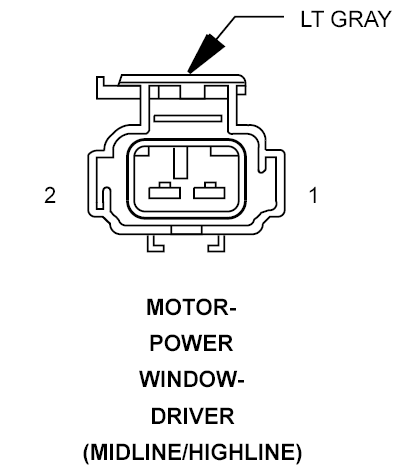

Driver Power Window Motor (Midline/Highline) Connector End View
MOTOR-POWER WINDOW-DRIVER - LT. GRAY 2-WAY (MIDLINE/HIGHLINE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q21 14OR/WT |
LEFT FRONT WINDOW DRIVER DOWN |
| 2 |
Q11 14OR/LG |
LEFT FRONT WINDOW DRIVER UP |
