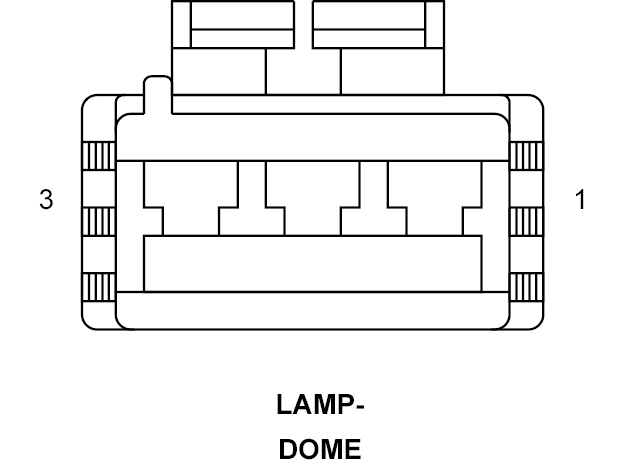

Dome Lamp Connector End View

LAMP-DOME - 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z327 20BK/WT	GROUND (EXCEPT BASE)
2	A908 18RD	FUSED B(+) (BASE)
2	M20 20YL/LB	COURTESY LAMP LOAD SHED (EXCEPT BASE)
3	Z327 20RD	GROUND (BASE)
3	A908 20RD	FUSED B(+) (EXCEPT BASE)
