Cargo Lamp (Except Base) Connector End View

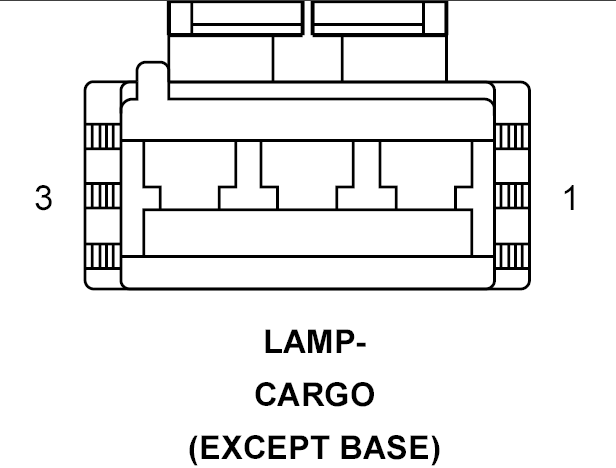

LAMP-CARGO - 3-WAY (EXCEPT BASE)

GKJ780137Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G773 20RD REAR COURTESY LAMP CONTROL
2 A908 18RD FUSED B(+)
3 Z327 20BK/WT GROUND
