Blower Motor Connector End View

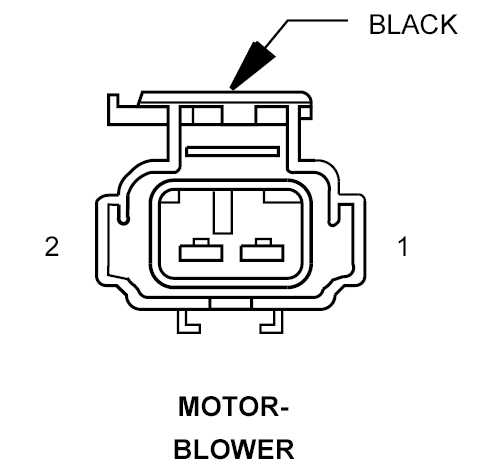

MOTOR-BLOWER - BLACK 2-WAY

GKJ780198Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 A111 12DG/RD BLOWER MOTOR RELAY OUTPUT
