Backup Lamp Switch (M/T) Connector End View

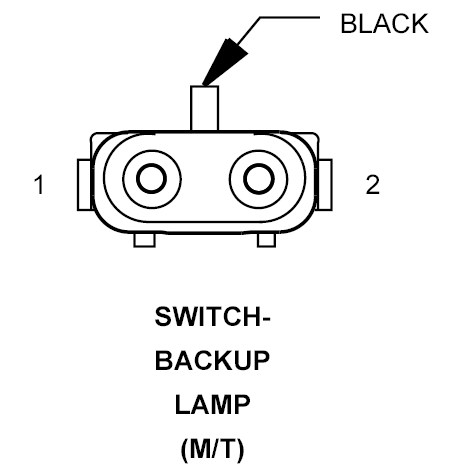

SWITCH-BACKUP LAMP - BLACK 2-WAY (M/T)

GKJ780286Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C115 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
2 L10 20WT/GY BACKUP LAMP FEED
