Automatic Shut Down Relay (In Power Distribution Center) Connector End View

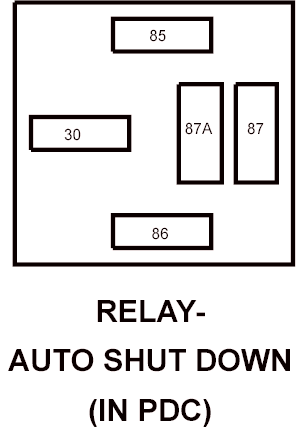

RELAY-AUTO SHUT DOWN (IN PDC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED B(+) |
| 85 |
K342 20BR/WT |
ASD RELAY CONTROL |
| 86 |
INTERNAL |
FUSED B(+) |
| 87 |
INTERNAL |
ASD RELAY OUTPUT |
| 87A |
- |
- |
