A/C Pressure Transducer Connector End View

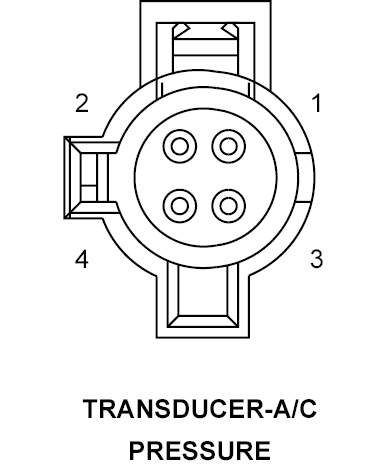

TRANSDUCER-A/C PRESSURE - 4-WAY

GKJ780318Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K310 20BR/DG SENSOR GROUND
2 K301 20BR/LG 5 VOLT SUPPLY
3 C18 20LB/BR A/C PRESSURE SIGNAL
4 - -
