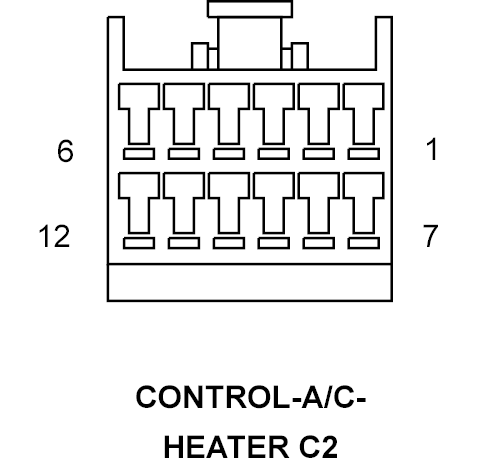

A/C Heater Control Connector End View (C2)
CONTROL-A/C-HEATER C2 - 12-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C35 20LB/OR |
MODE DOOR DRIVER (A) |
| 2 |
F302 20GY/PK |
FUSED IGNITION SWITCH OUTPUT (RUN) |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
C215 20LB |
REAR WINDOW DEFOGGER CONTROL |
| 7 |
- |
- |
| 8 |
Z945 20BK |
GROUND |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
C16 20DB/GY |
FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
