Circuit Schematic

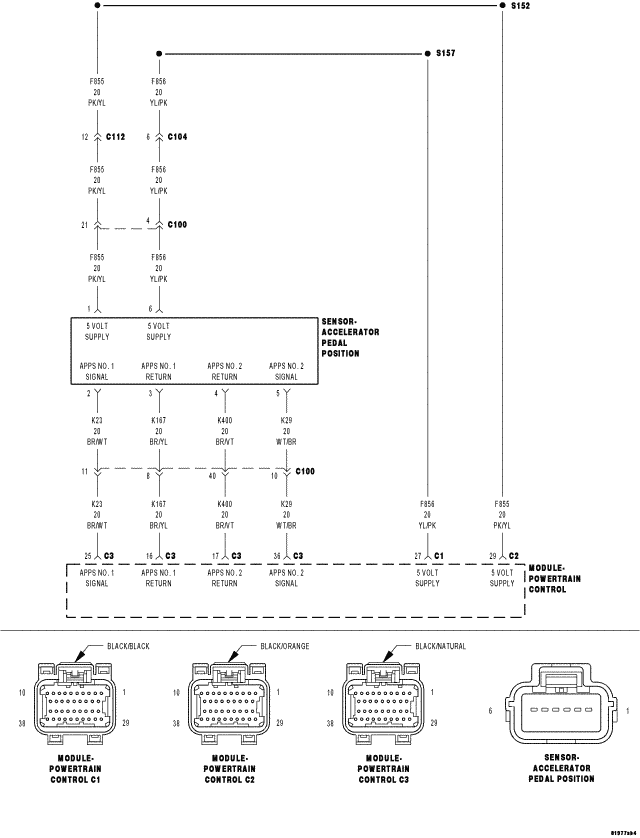

Fig 1: Accelerator Pedal Position Sensor 1 Circuit Schematic

GC0056779

Courtesy of CHRYSLER LLC
