Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P060D To P1404 - Gas >> P0685-Auto Shutdown Control Circuit >> Circuit Schematic

Circuit Schematic

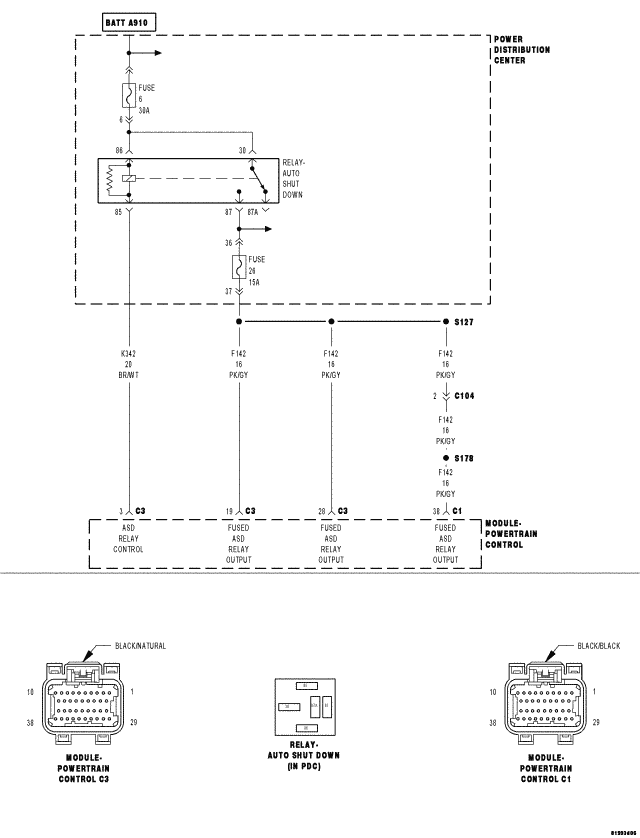

Fig 1: Auto Shutdown Control Circuit Schematic

GC0056776

Courtesy of CHRYSLER LLC
