Circuit Schematic

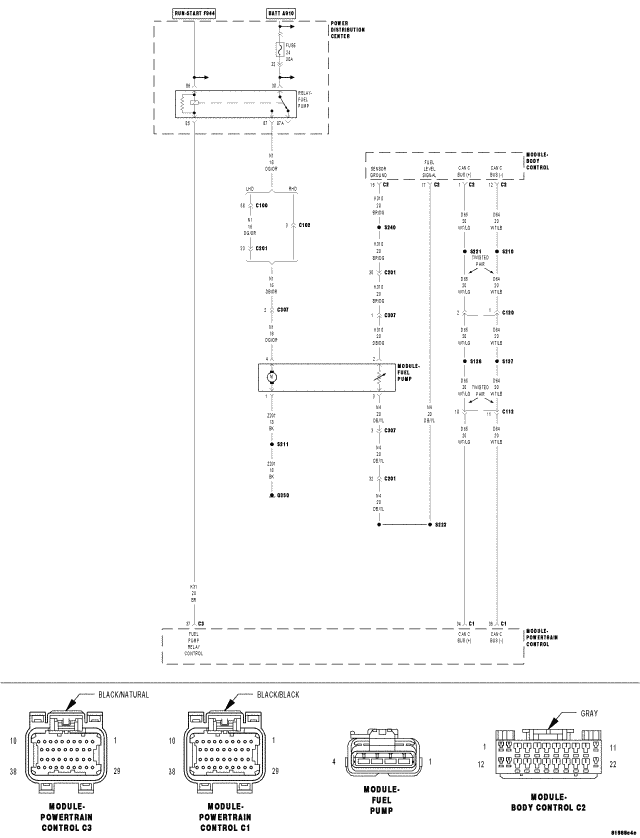

Fig 1: Fuel Level Sensor Signal Circuit Schematic

GC0056790

Courtesy of CHRYSLER LLC
