Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0325 To P0501 - Gas >> P0440-General EVAP System Failure >> Circuit Schematic

Circuit Schematic

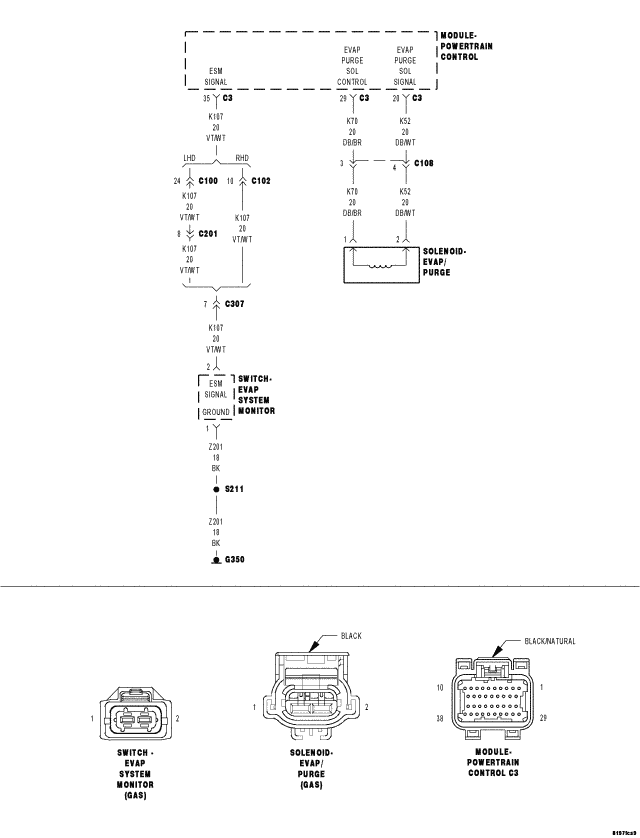

Fig 1: EVAP Purge Solenoid System Circuit Schematic

GC0056789

Courtesy of CHRYSLER LLC
