Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0157 To P0315 - Gas >> P0174-Fuel System 2/1 Lean >> Circuit Schematic

Circuit Schematic

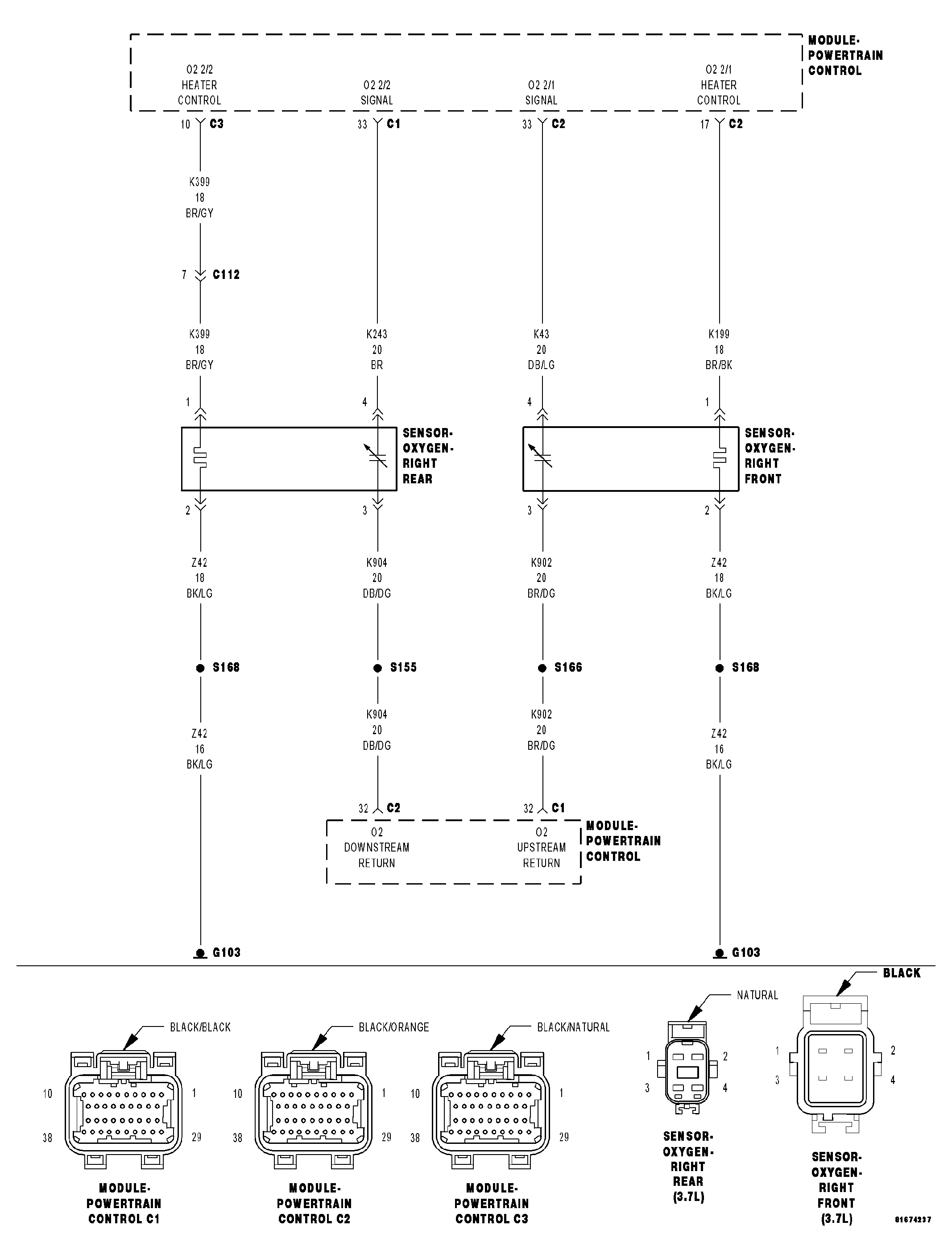

Fig 1: Right Oxygen Sensors Circuit Schematic

GC0046260

Courtesy of CHRYSLER LLC
