Home >> Jeep >> 2007 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0157 To P0315 - Gas >> P0171-Fuel System 1/1 Lean >> Circuit Schematic

Circuit Schematic

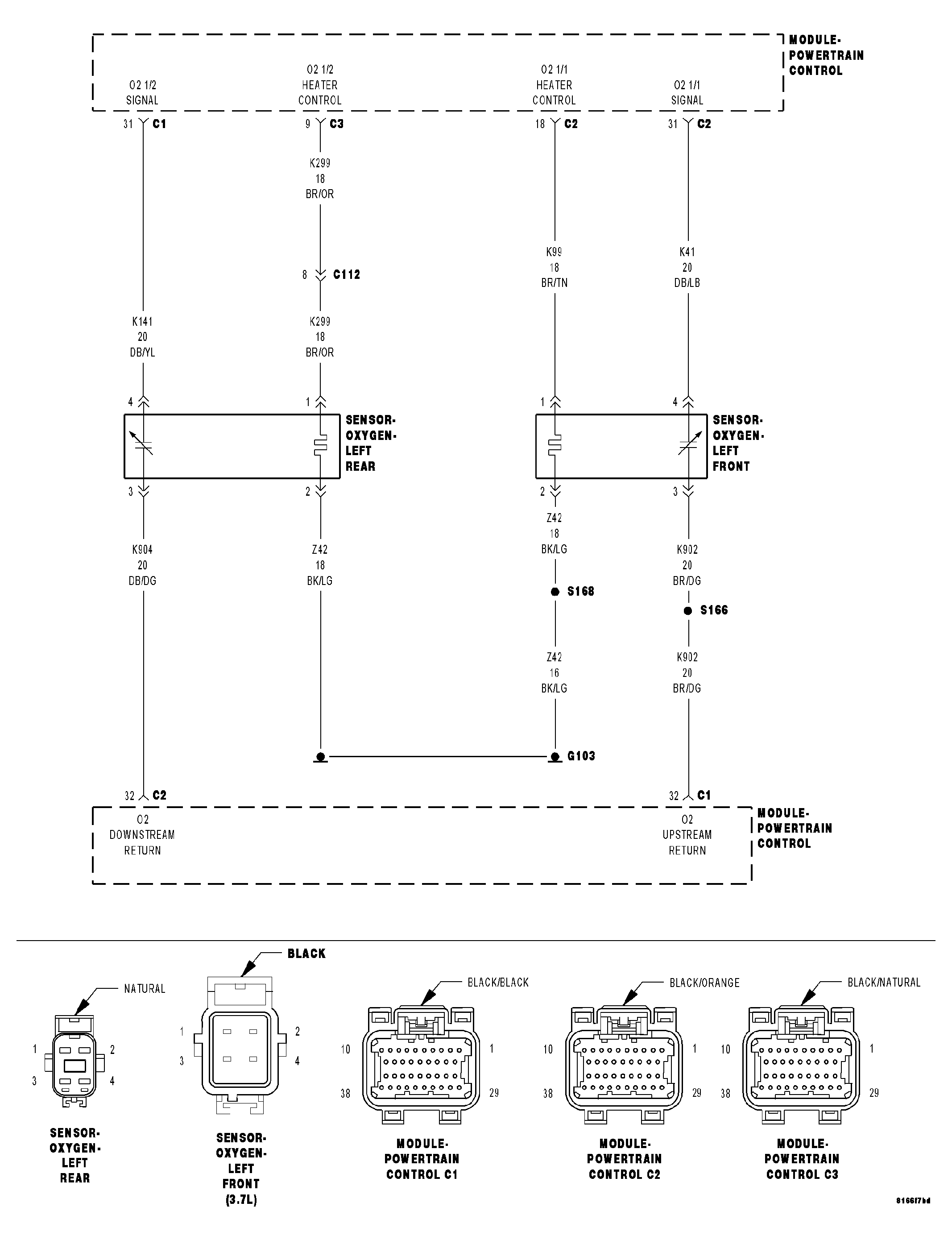

Fig 1: Left Oxygen Sensors Circuit Schematic

GC0046259

Courtesy of CHRYSLER LLC
