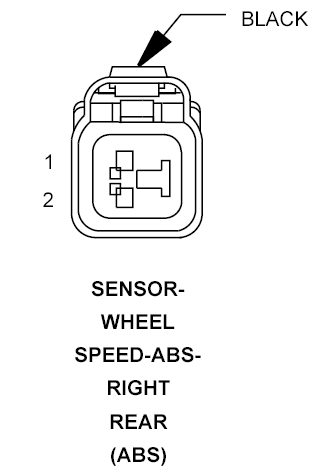

Right Rear Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-RIGHT REAR - BLACK 2-WAY (ABS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B2 20DG/LB |
RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B1 20DG/OR |
RIGHT REAR WHEEL SPEED SIGNAL |
