PCI Bus Circuit Open: Notes

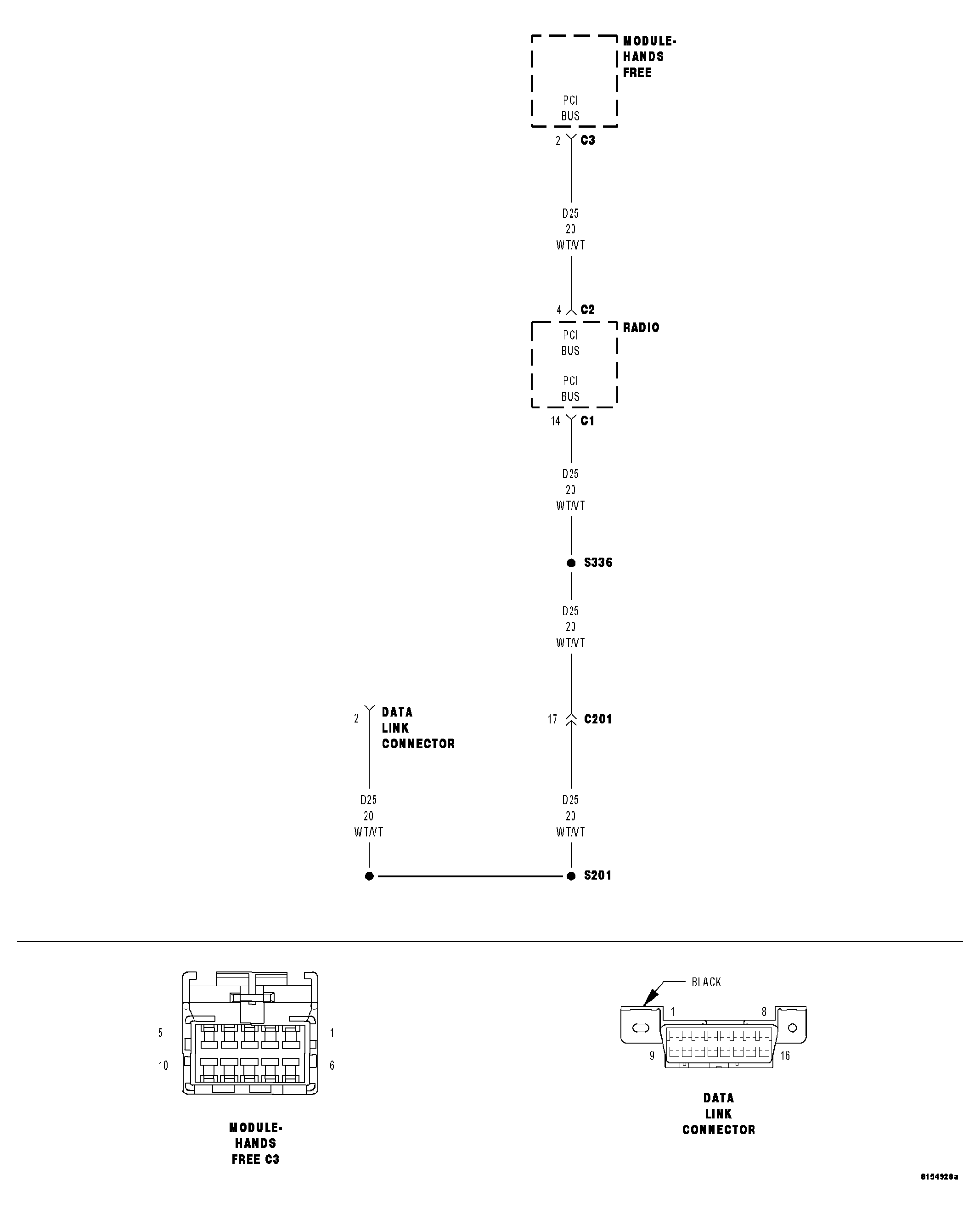

Fig 1: Hands Free Module/PCI Bus Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   With the ignition on.

2. Set Condition:

   The Hands Free Module detected an open on the (D25) PCI Bus circuit.
