Home >> Jeep >> 2007 >> Grand Cherokee Laredo, 3.0 M >> Repair and Diagnosis >> Engine Performance >> System >> Diesel - DTCS P2010 To P2239 >> P2121-Accelerator Pedal Position Sensor 1 Performance >> Circuit Schematic

Circuit Schematic

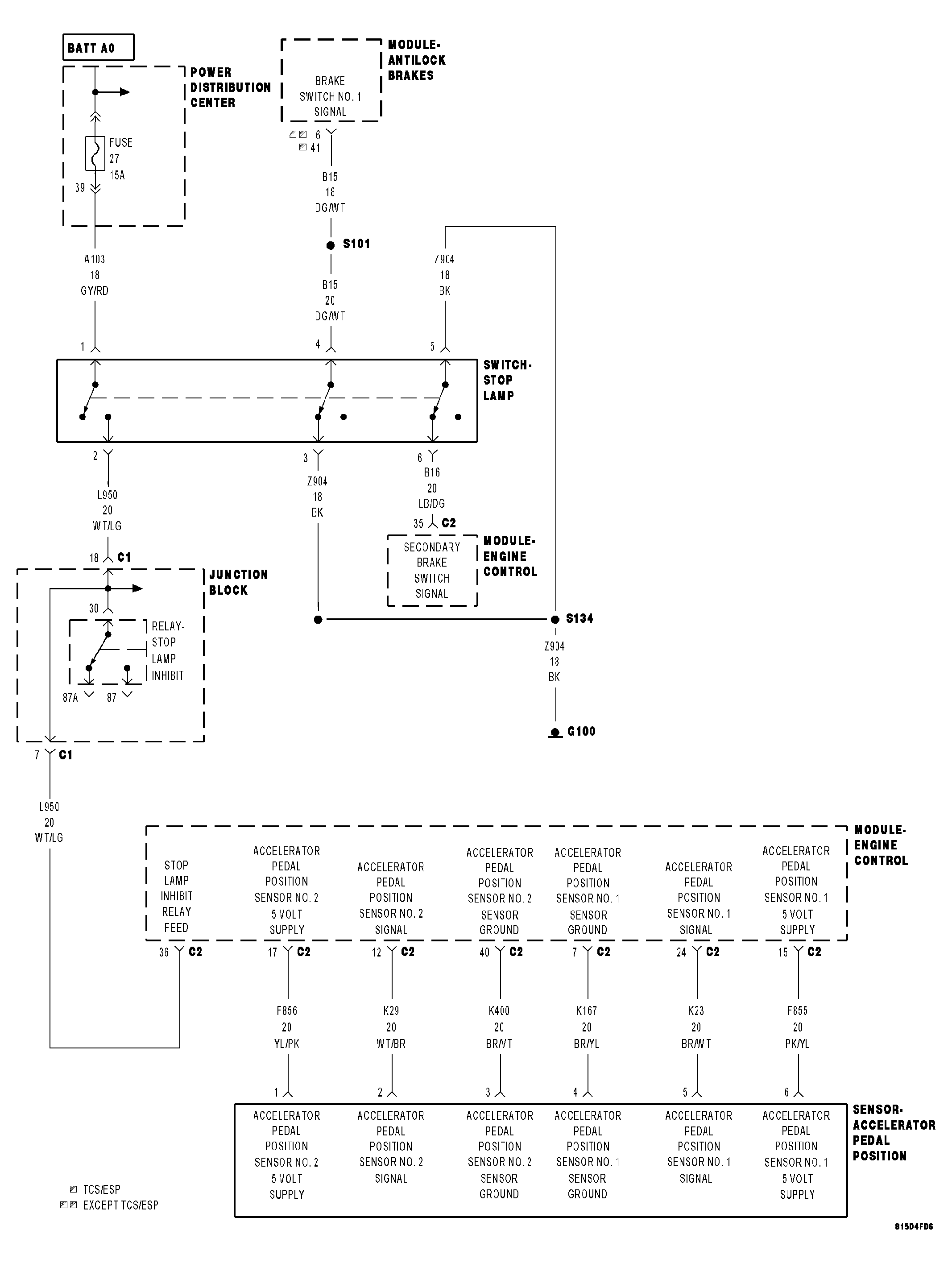

Fig 1: Stop Lamp Switch & Accelerator Pedal Position Sensor Circuit Schematic

GC0047220

Courtesy of CHRYSLER LLC
