Transducer, A/C Pressure: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use only the specified O-ring as it is made of special material for R-134a. Use only refrigerant oil of the type required for the A/C compressor.

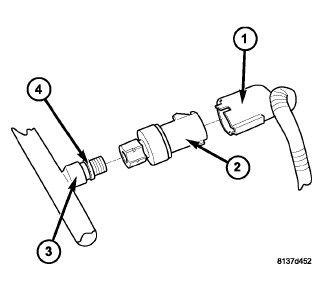

Fig 1: A/C Pressure Transducer
GC0082715Courtesy of CHRYSLER LLC
NOTE: Typical A/C pressure transducer shown.
  1. Lubricate a new rubber O-ring seal (4) with clean refrigerant oil and install it onto the A/C discharge line (3).
  2. Install the A/C pressure transducer (2) onto the A/C discharge line. Tighten the A/C pressure transducer securely.
  3. Connect the wire harness connector (1) to the A/C pressure transducer.
  4. Reinstall the top of the front fascia. Refer to Frame and Bumpers/Bumpers/FASCIA, Front - Installation .
  5. Reconnect the negative battery cable.
