Section 30 (Audio System & Video System (Service Information)): Amplifier: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Patriot and 2009 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

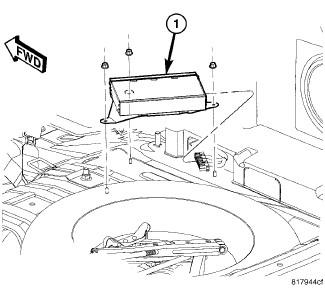

Fig 1: Removing/Installing Amplifier
GC0098477Courtesy of CHRYSLER LLC
  1. Install amplifier (1).
  2. Install the mounting fasteners.
  3. Connect wire harness connector to amplifier.
  4. Connect battery negative cable.
