EGR Valve

Fig 1: Air Inlet Duct
GC0056181Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (3).
  2. Disconnect negative battery cable.
    Fig 2: ENGINE COVER
    GC0056182Courtesy of CHRYSLER LLC
  3. Remove engine cover. Refer to REMOVAL .

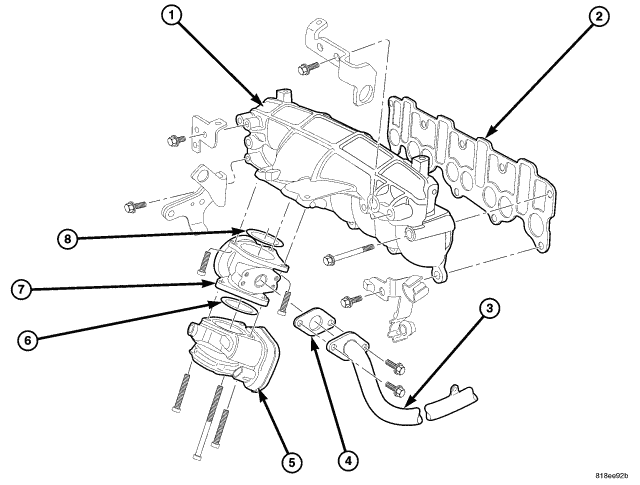

    Fig 3: Intake Manifold & Components
    GC0056183Courtesy of CHRYSLER LLC
  4. Disconnect EGR valve vacuum line.
  5. Disconnect EGR pipe (3) at EGR valve.
  6. Remove air inlet tube from intake manifold flap motor (5).
  7. Remove intake manifold flap motor (5).
  8. Remove EGR valve retaining bolts and remove EGR valve (7).
