Mass Air Flow (MAF) Sensor

Disconnect negative battery cable.
Disconnect mass air flow (MAF) sensor electrical connector.
Disconnect air cleaner to turbocharger hose.
Remove MAF to air cleaner housing retaining bolts and remove sensor.

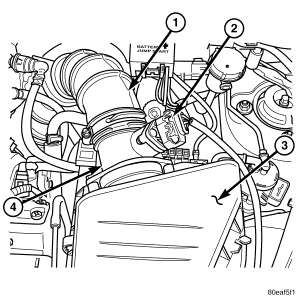

Fig 1: MAF SENSOR LOCATION

GC0055534

Courtesy of CHRYSLER LLC

1 - AIR CLEANER TO TURBOCHARGER HOSE

2 - MAF SENSOR ELECTRICAL CONNECTOR

3 - AIR CLEANER HOUSING

4 - MAF SENSOR
