Rear Differential Solenoid Connector End View

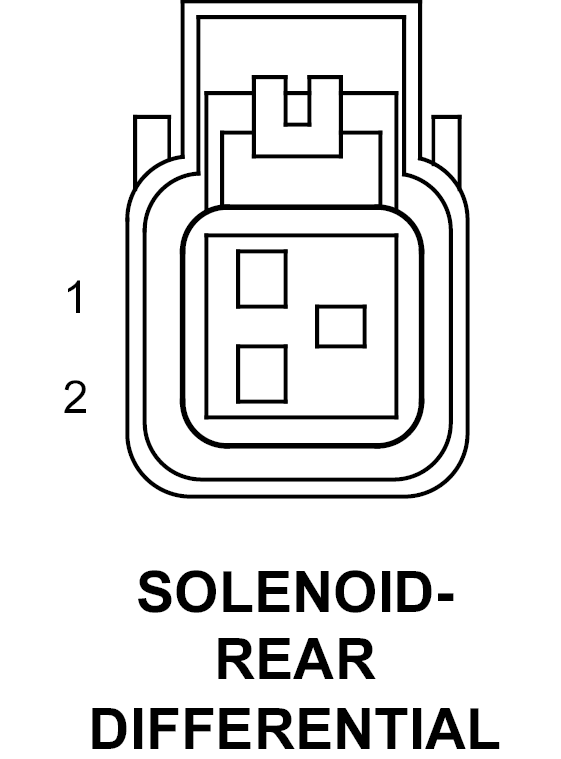

SOLENOID-REAR DIFFERENTIAL - 2-WAY

GXK780401Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T301 18DG/YL SWITCHED BATTERY SOLENOID SUPPLY
2 T312 18YL/VT REAR DIFFERENTIAL SOLENOID CONTROL
