Park Lamp Relay Connector End View

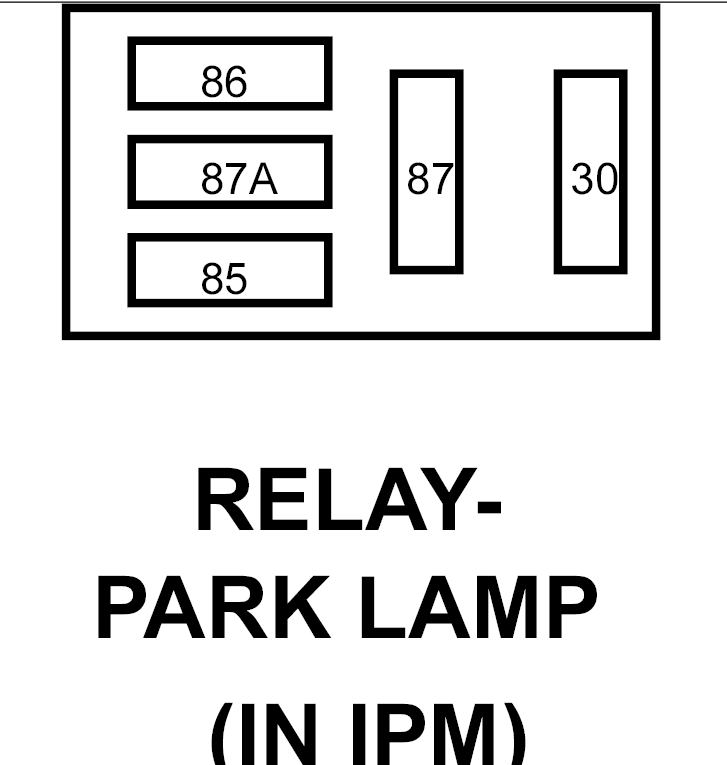

RELAY-PARK LAMP - 0-WAY

GXK713008Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
30 INTERNAL PARK LAMP RELAY OUTPUT
85 INTERNAL PARK LAMP RELAY CONTROL
86 INTERNAL B(+)
87 INTERNAL B(+)
87A Z387 20BK GROUND
