Liftgate Glass (Heated Ground) Connector End View

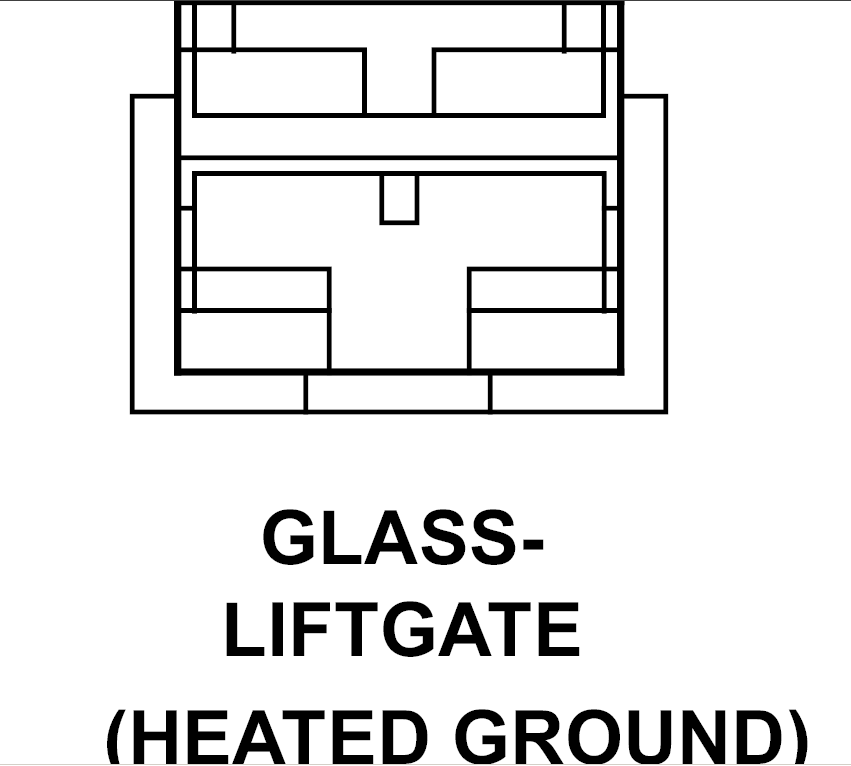

GLASS-LIFTGATE - 1-WAY(HEATED GROUND)

GXK780136Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z800 12BK GROUND
