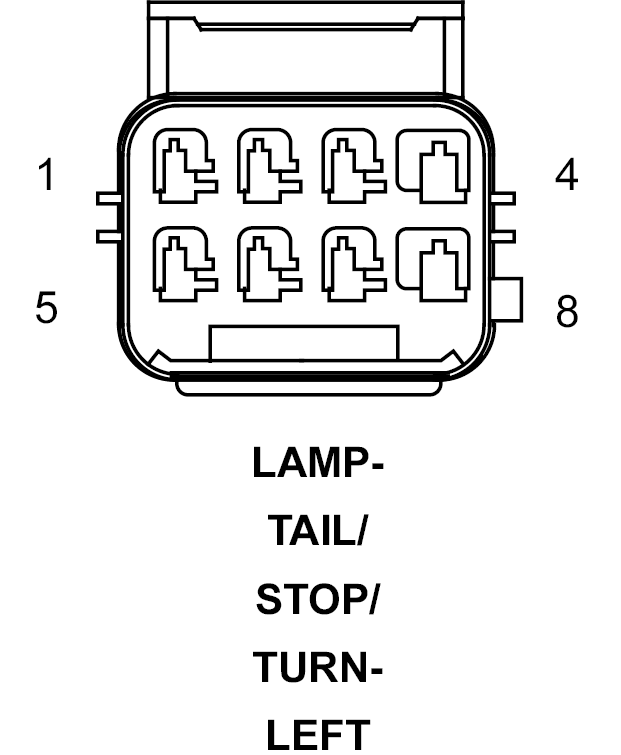

Left Tail Stop Lamp/Turn Lamp Connector End View
LAMP-TAIL/STOP/TURN-LEFT - 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L50 18WT/TN |
BRAKE LAMP SWITCH OUTPUT |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
L777 20WT/VT |
FUSED PARK LAMP RELAY OUTPUT |
| 6 |
L1 18WT/LG |
BACKUP LAMP FEED |
| 7 |
L63 18WT/DG |
LEFT REAR TURN SIGNAL CONTROL |
| 8 |
Z918 18BK |
GROUND |
