Left Side Repeater Lamp (Export) Connector End View

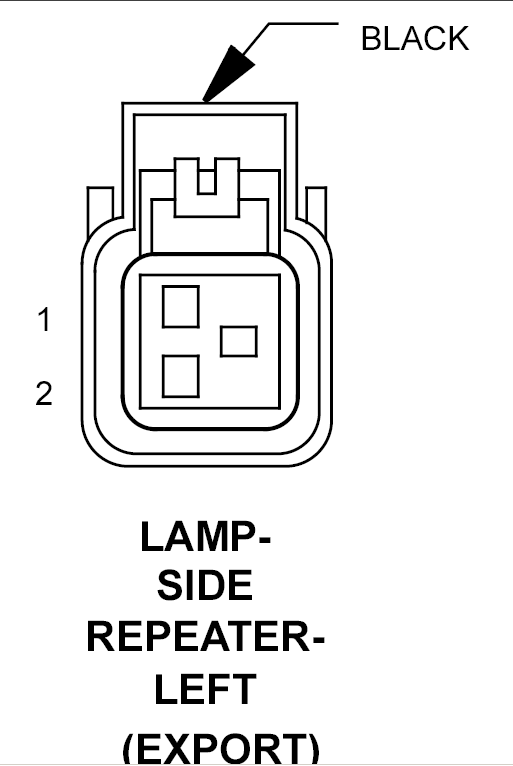

LAMP-SIDE REPEATER-LEFT - BLACK 2-WAY(EXPORT)

GXK780189Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L61 20WT/LG LEFT TURN SIGNAL
2 Z910 18BK GROUND
