Inline Connector End View (C328 )

C328 - 6-WAYFEMALE

GXK780102Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z908 14BK GROUND
2 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT
3 F850 20LB/PK FUSED RUN RELAY OUTPUT
4 Z908 20BK GROUND
5 E2 20OR/BR PANEL LAMPS DRIVER
6 - -

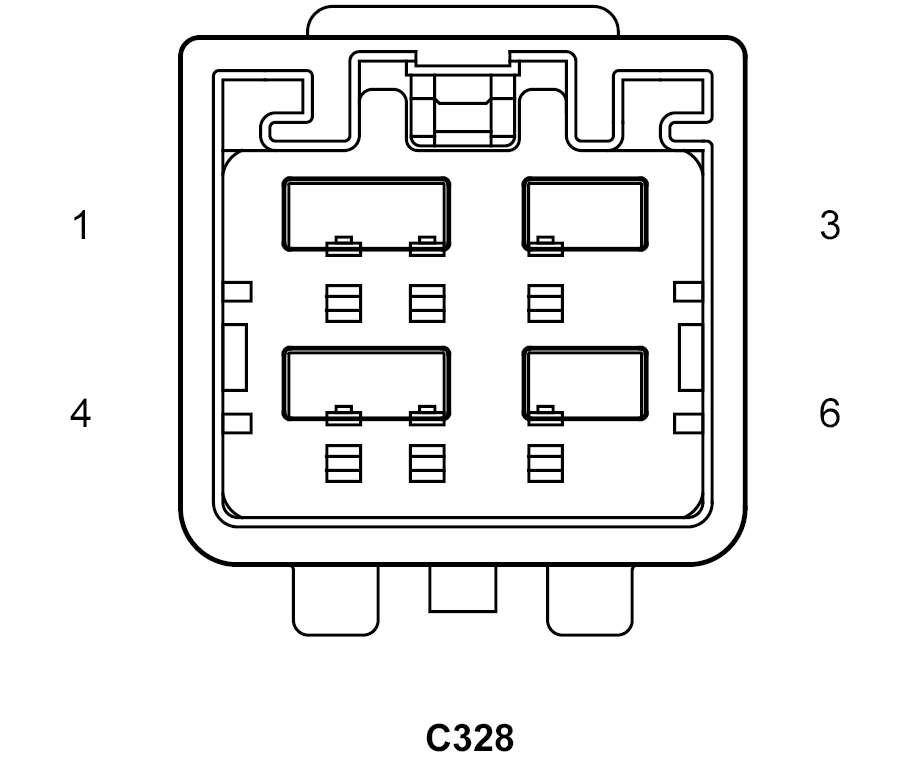

C328 - 6-WAYMALE

GXK780101Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z908 14BK GROUND
2 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT
3 F850 20LB/PK FUSED RUN RELAY OUTPUT
4 Z908 14BK GROUND
5 E2 20OR/BR PANEL LAMPS DRIVER
6 - -
