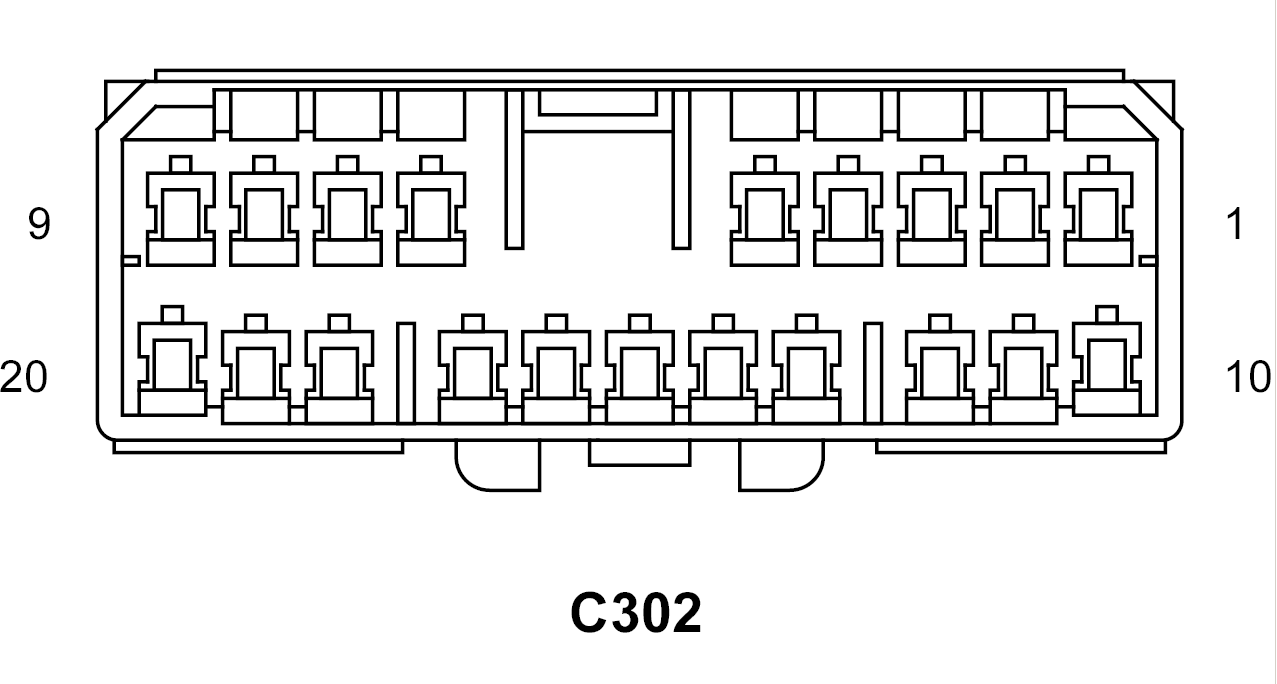

Inline Connector End View (C302 )

C302 - 20-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	C17 20LB/DG	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4	-	-
5	-	-
6	-	-
7	Z908 16BK	GROUND
8	P699 20LG/YL	FOLDING MIRROR CONTROL
9	-	-
10	-	-
11	-	-
12	P110 20LB/WT	FOLDING MIRROR RETURN
13	-	-
14	P792 16LG/TN	PASSENGER DOORS UNLOCK RELAY OUTPUT
15	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
16	-	-
17	-	-
18	-	-
19	-	-
20	P76 20TN/LB	MIRROR COMMON DRIVER (EXCEPT MEMORY)

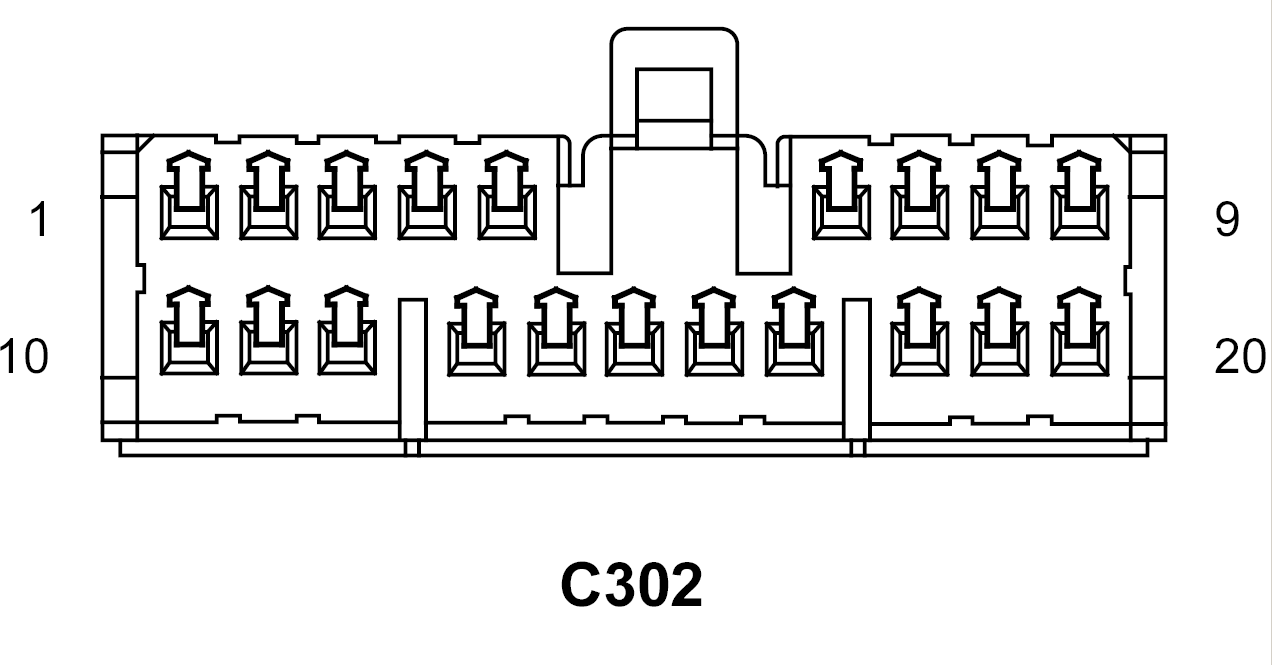

C302 - 20-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	C17 20LB/DG	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4	-	-
5	-	-
6	-	-
7	Z908 16BK	GROUND
8	P699 20LG/YL	FOLDING MIRROR CONTROL
9	-	-
10	-	-
11	-	-
12	P110 20LB/WT	FOLDING MIRROR RETURN
13	-	-
14	P792 18LG/TN	PASSENGER DOORS UNLOCK RELAY OUTPUT
15	P778 18LG/LB	DOOR LOCK RELAY OUTPUT
16	-	-
17	-	-
18	-	-
19	-	-
20	P76 20TN/LB	MIRROR COMMON DRIVER
