Inline Connector End View (C206 )

C206 - 4-WAYFEMALE

GXK780043Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
3 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
4 - -

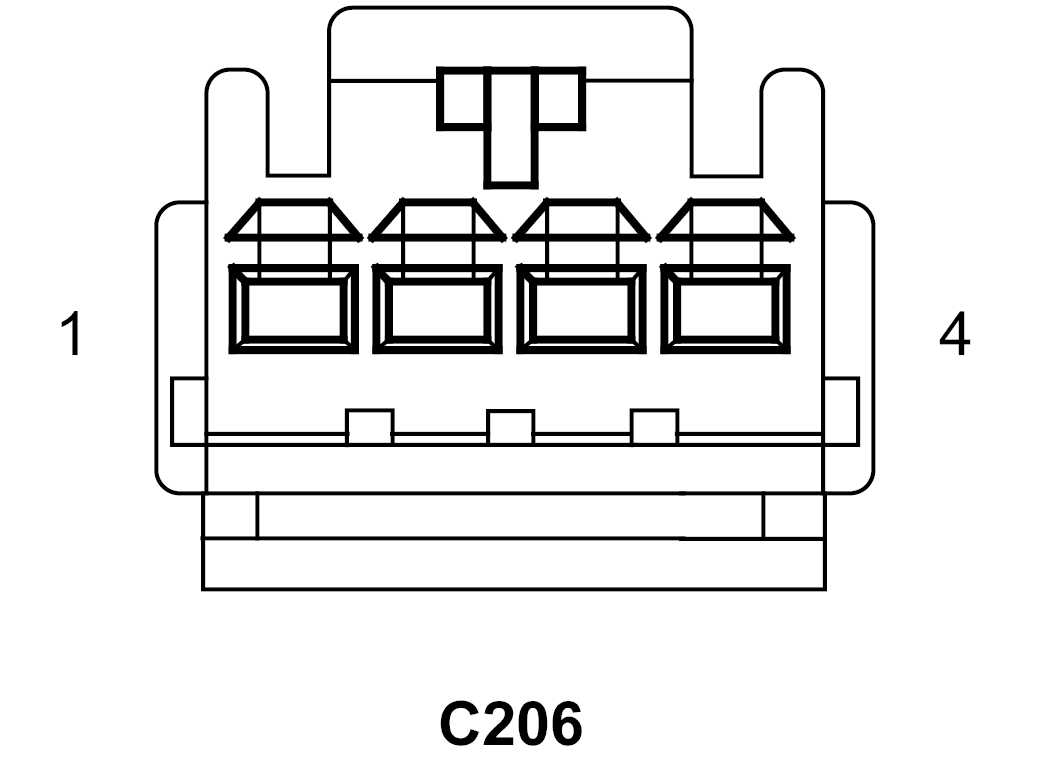

C206 - 4-WAYMALE

GXK780044Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
3 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
4 - -
