Ignition Coil 6 Connector End View

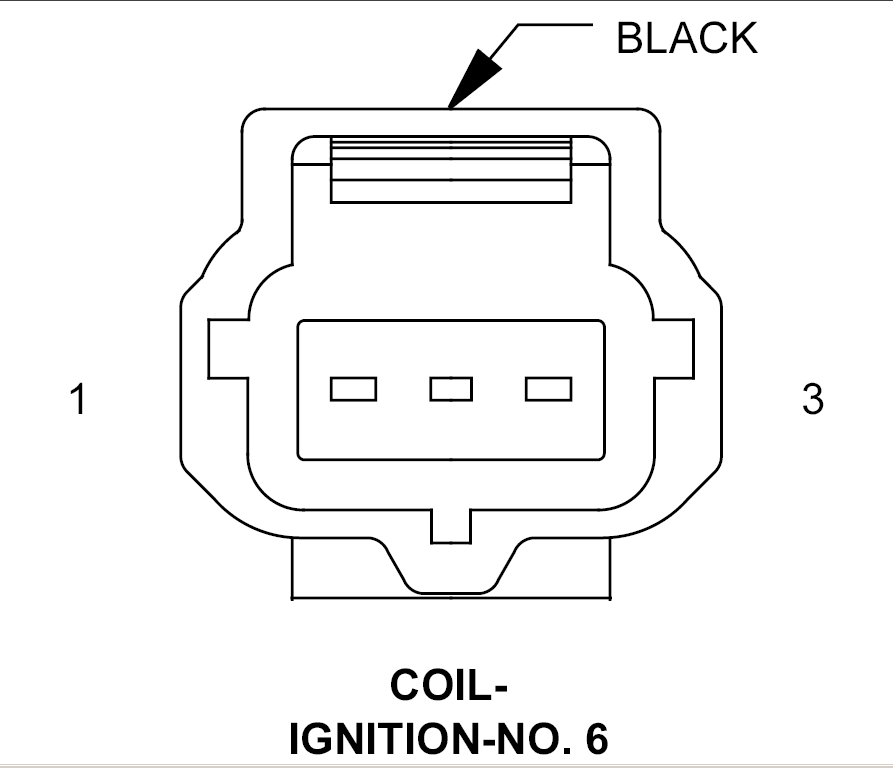

COIL-IGNITION-NO. 6 - BLACK 3-WAY

GXK780118Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K10 16DB/OR COIL CONTROL NO. 6
2 A15 16RD/TN FUSED ASD RELAY OUTPUT
3 - -
