Driver Squib Airbag 1 Connector End View

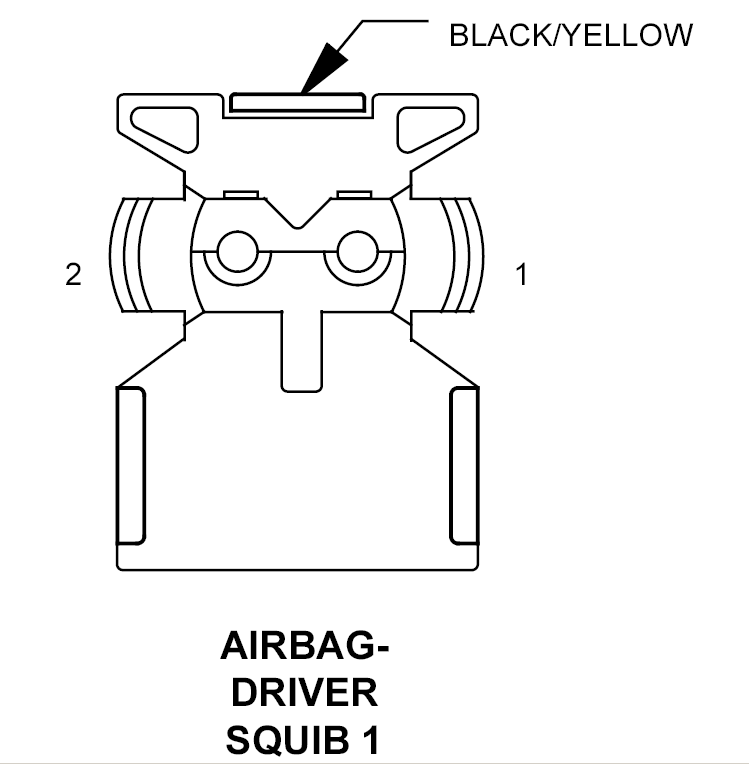

AIRBAG-DRIVER SQUIB 1 - BLACK/YELLOW 2-WAY

GXK780008Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R345 20LG/OR DRIVER SQUIB 1 LINE 1
2 R343 20LG/BR DRIVER SQUIB 1 LINE 2
