Door Liftgate Latch Connector End View (C2)

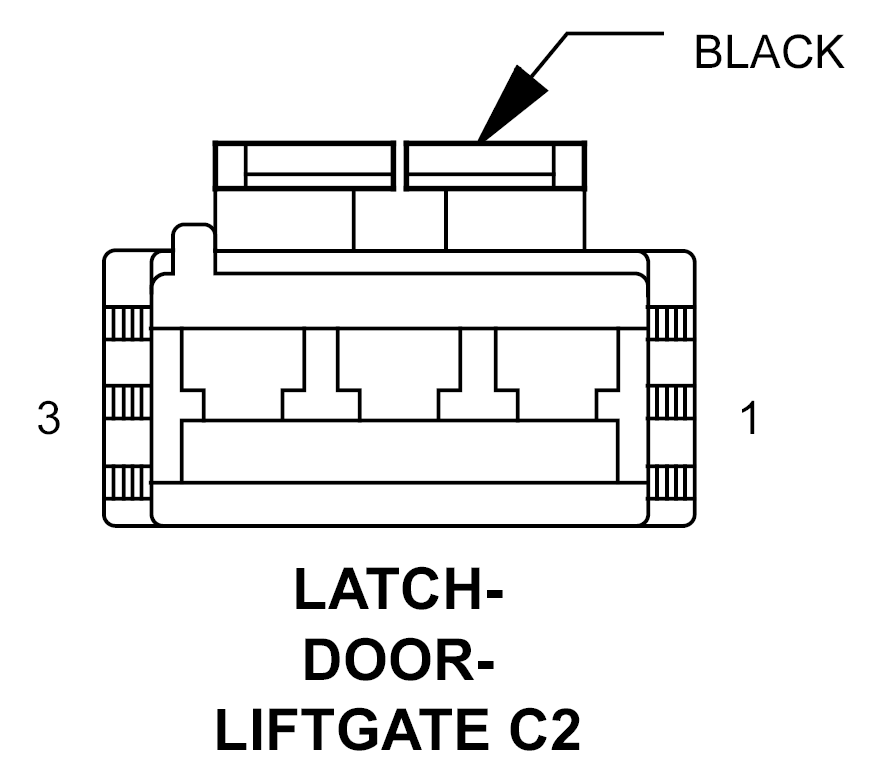

LATCH-DOOR-LIFTGATE C2 - BLACK 3-WAY

GXK780198Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P778 16LG/LB DOOR LOCK RELAY OUTPUT
2 - -
3 P792 16LG/TN PASSENGER DOORS UNLOCK RELAY OUTPUT
