Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0175 To P0315 >> P0302-Cylinder 2 Misfire >> Circuit Schematic

Circuit Schematic

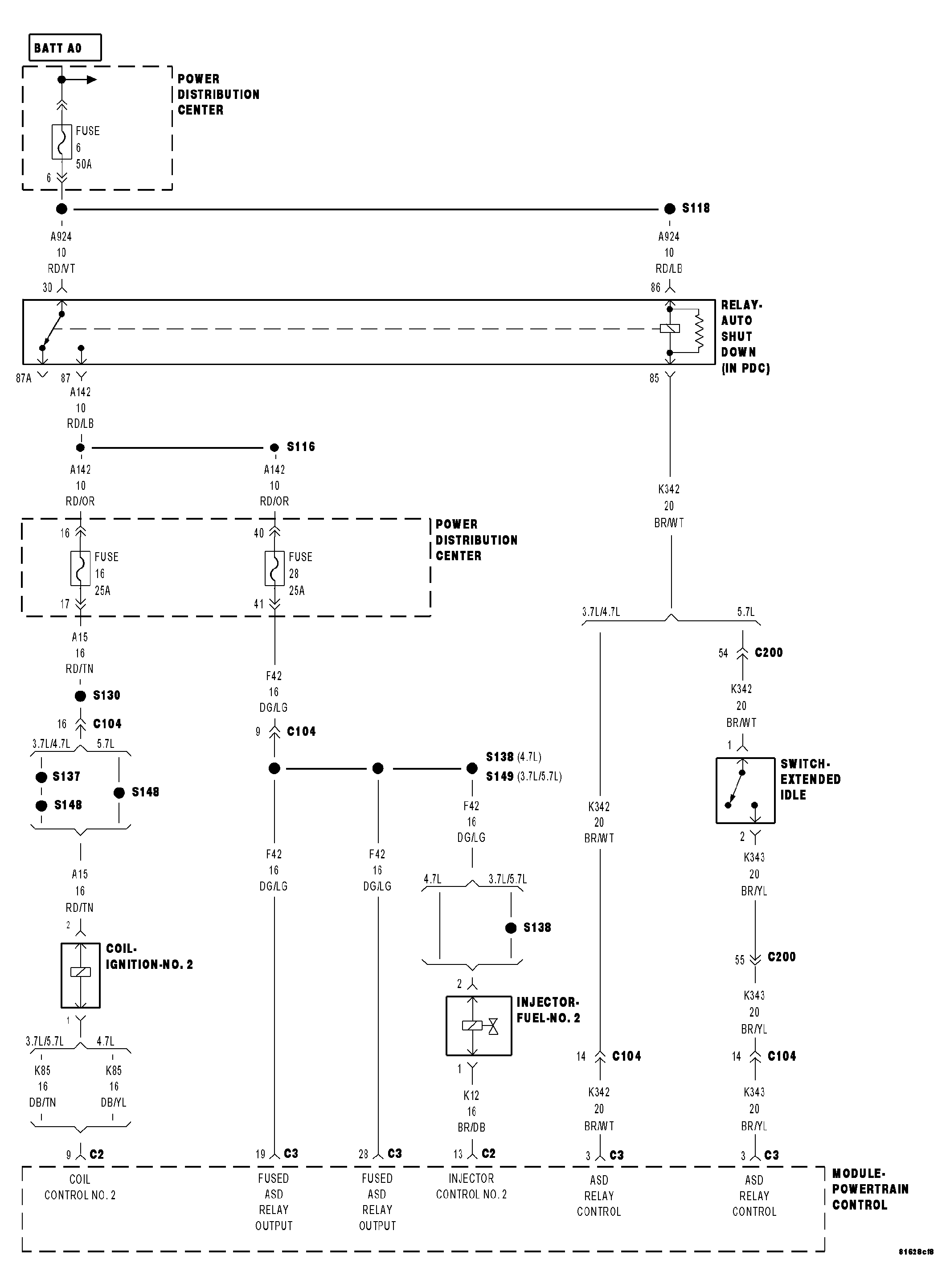

Fig 1: Cylinder 2 Injector & Coil Circuit Schematic

GC0044754

Courtesy of CHRYSLER LLC
