Circuit Schematic

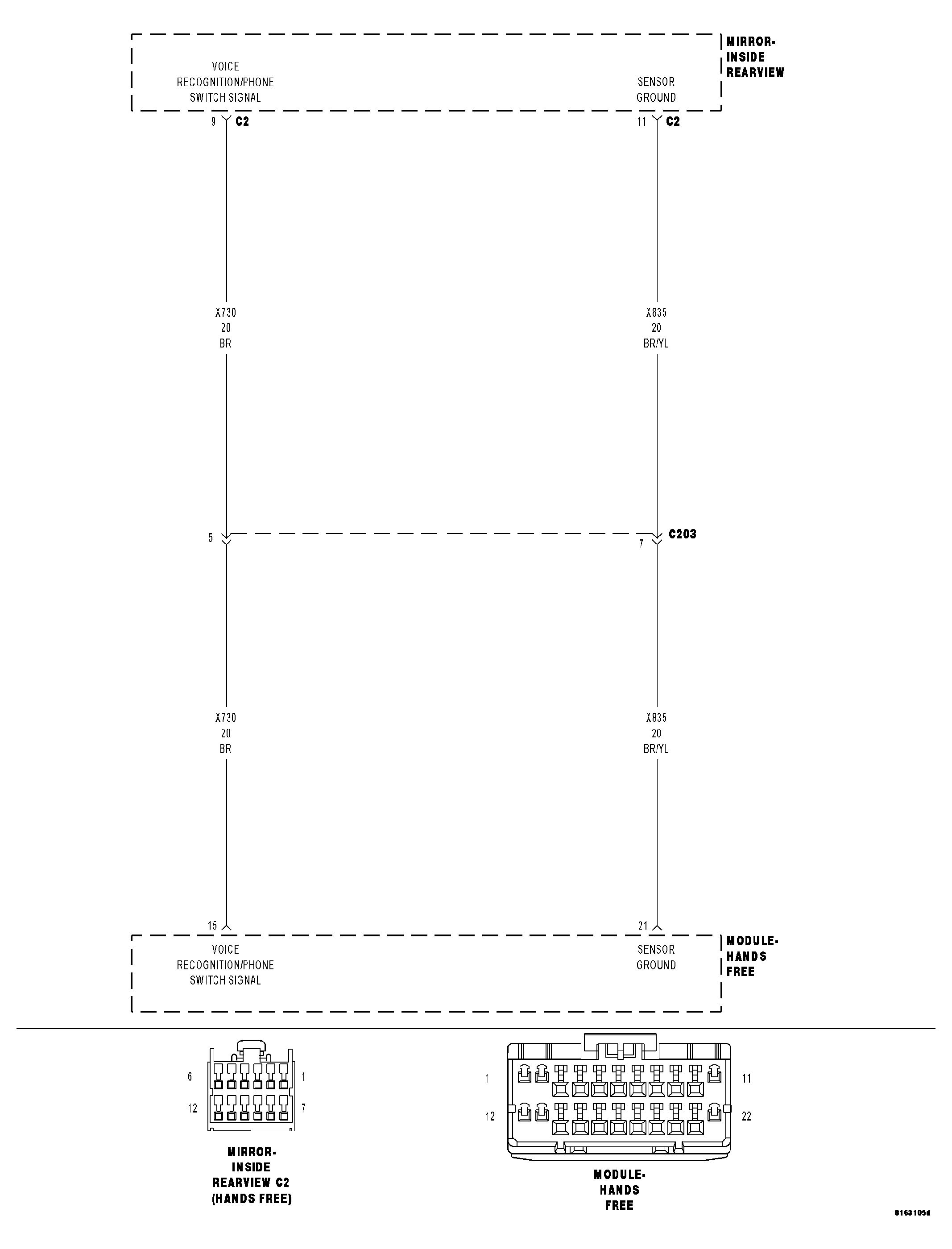

Fig 1: Voice Recognition/Phone Switch Input Circuit Schematic

GC0047365

Courtesy of CHRYSLER LLC
