Inline Connector End View (C305 )

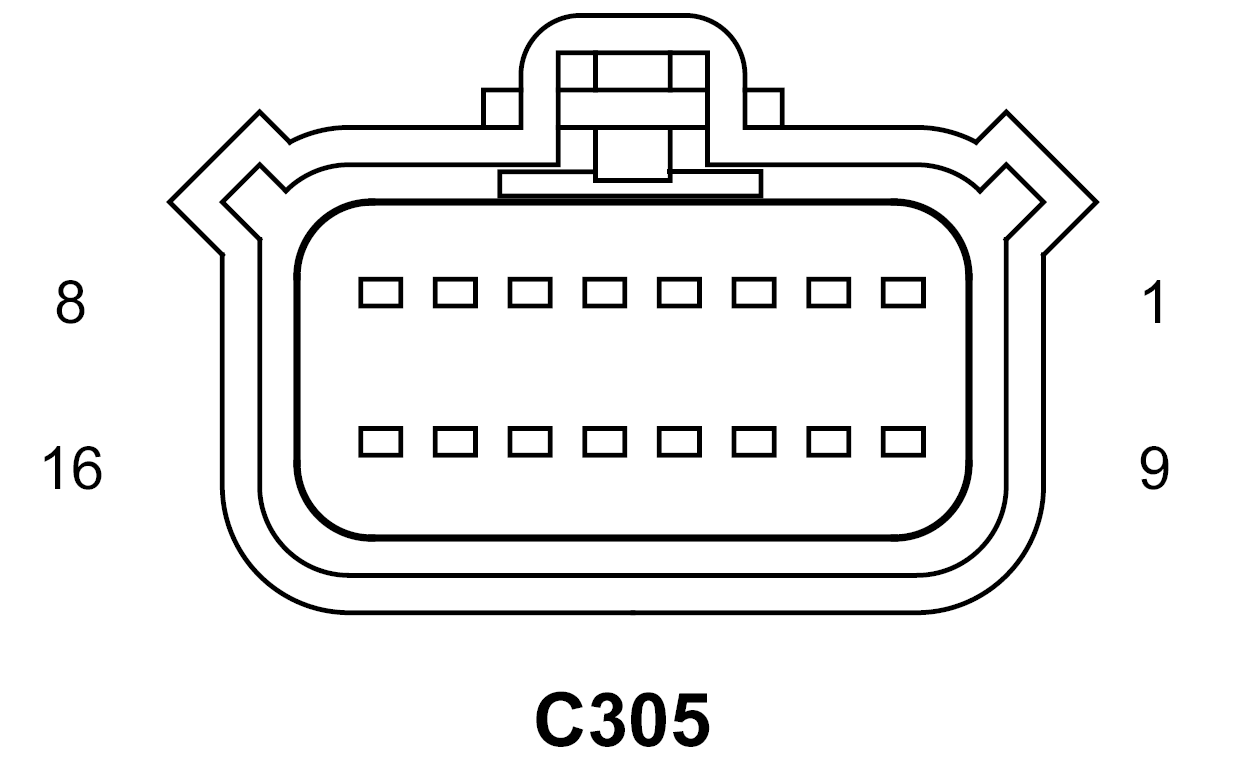

C305 - 16-WAYFEMALE

GXK780053Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A33 16RD/YL FUSED B(+)
2 R262 20BK/LB PASSENGER SEAT POSITION SENSOR DATA
3 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
4 - -
5 - -
6 - -
7 - -
8 Z909 14BK GROUND
9 P187 18LG/BR LEFT SEAT HEATER B(+) DRIVER
10 D54 20WT CAN B BUS (-)
11 D55 20WT/OR CAN B BUS (+)
12 - -
13 - -
14 - -
15 - -
16 Z917 14BK GROUND

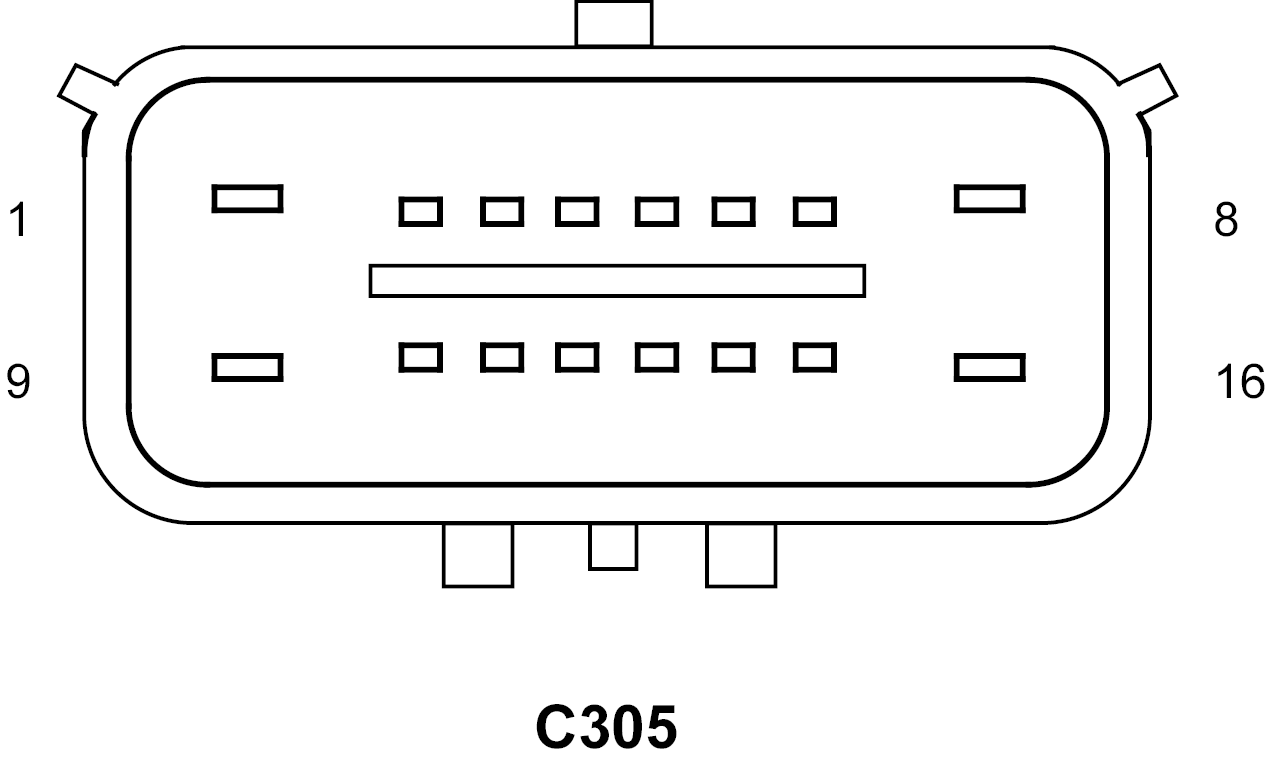

C305 - 16-WAYMALE

GXK780054Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A33 16RD/YL FUSED B(+)
2 R262 20BK/LB PASSENGER SEAT POSITION SENSOR DATA
3 R264 20VT/LB PASSENGER SEAT POSITION SENSOR VOLTAGE
4 - -
5 - -
6 - -
7 - -
8 Z909 14BK GROUND
9 P187 18LG/BR LEFT SEAT HEATER B(+) DRIVER
10 D54 20WT CAN B BUS (-)
11 D55 20WT/OR CAN B BUS (+)
12 - -
13 - -
14 - -
15 - -
16 Z917 14BK GROUND
