Door Liftgate Latch Connector End View (C1)

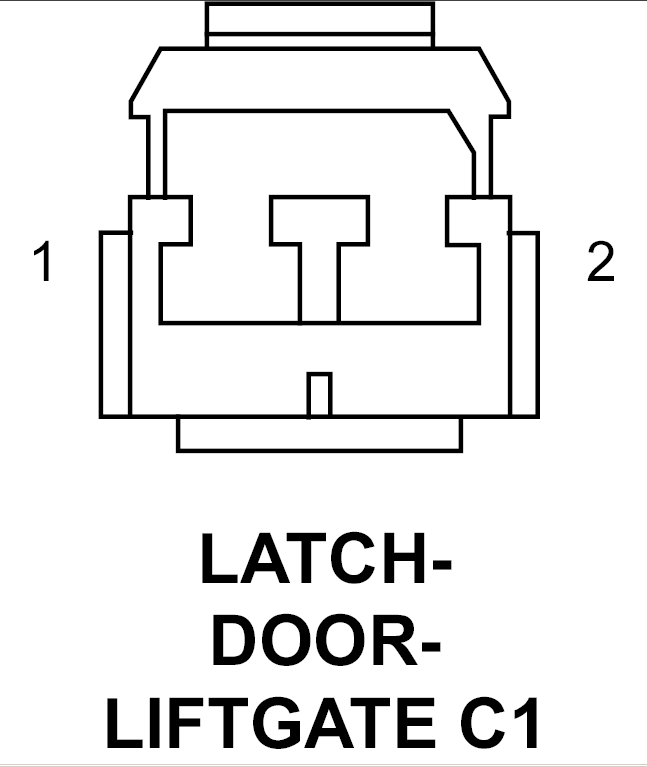

LATCH-DOOR-LIFTGATE C1 - 2-WAY

GXK780197Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z800 20BK GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
