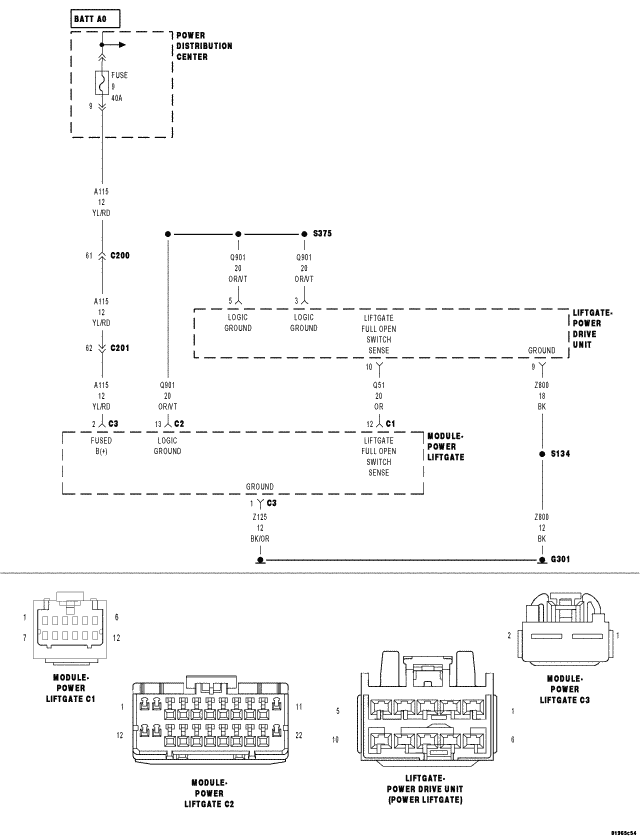

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Liftgate System - Electrical Diagnostics >> Power Liftgate - Electrical Diagnostics >> DTC Troubleshooting >> B1969-Power Liftgate Open Direction Excessive Position Sensor Counts >> Circuit Schematic
